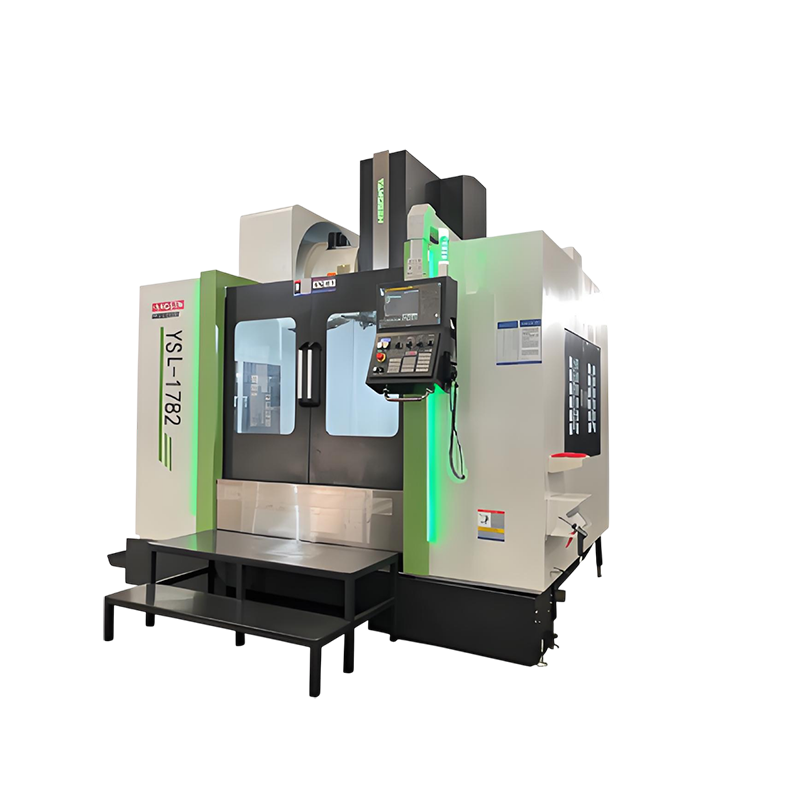

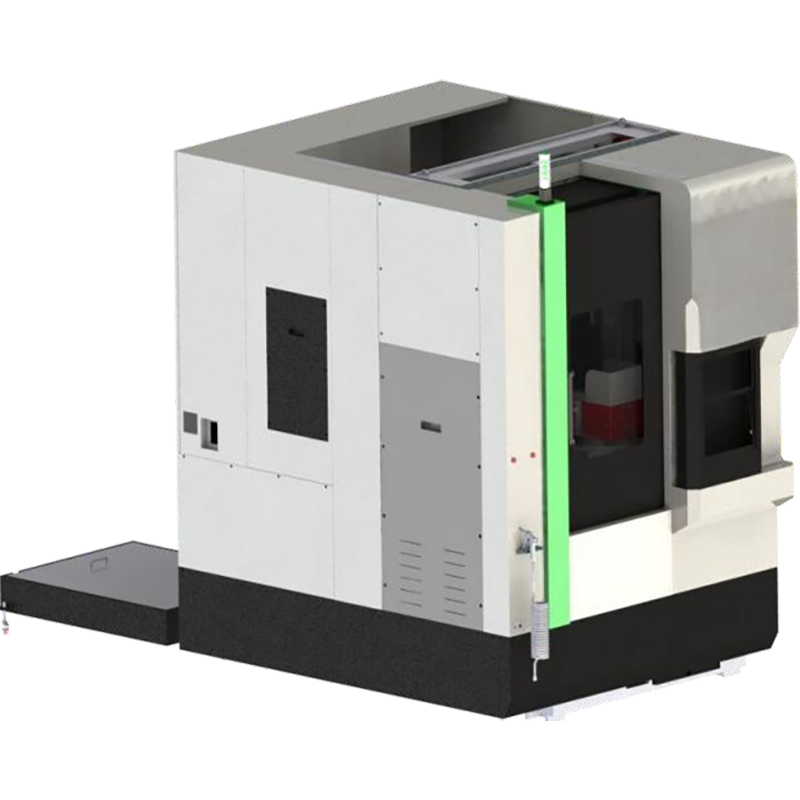

A Vertical Lathe Machine (also called a Vertical Turning Lathe, or VTL) is a type of lathe where the spindle axis is oriented vertically, rather than horizontally. These machines are particularly suited for machining large, heavy, and awkwardly shaped workpieces.
tối đa. Du lịch trục X :
1700mmtối đa. Du lịch trục Y :
820mmtối đa. Hành trình trục Z :
750mmTrọng lượng phôi tối đa :
1500KGĐăng kí :
Precision Mold, Auto PartsXử lý :
Surface Milling, Drilling Holes, Tapping，Heavy CuttingVertical Lathe Structural Characteristics
 |
Ultra-high performance machining center 1. Use a 24T disc tool magazine to improve processing efficiency. 2. Both X/Y axes are equipped with high-power motors as standard, and the Z axis uses a larger motor. The Z axis adds nitrogen balance, which enables fast and accurate positioning and reduces vibration. 3. The spindle motor is equipped with a 15-18.5 KW high-torque generalized motor as standard. The spindle torque is significantly improved compared with other brands of the same type, which is very suitable for heavy cutting.
|
Optical Machine Characteristics
1. Adopt Rexroth linear rail;
2. Extra large span on the Y axis;
3. X-axis 6 slide support, strong rigidity to ensure powerful cutting;
4. The three axes use NSK original bearings (3062), 3+2 mode, pre-tensioned to prevent thermal displacement;
5. BBT 5 0 spindle ring spray design;
6. Adopting Taiwan's original ultra-high speed knife-beating cylinder, the knife-beating time can reach 0.28s;
7. The machine tool bed is made of HT300 high-grade cast iron.
Vertical Lathe Parameters
| Item | Specification | unit | YSL-1782 |
| Trave | X/Y/Z axis | mm | 1700/820/750 |
| Distance from spindle nose to worktable | mm | 150-900 | |
| Distance from spindle center to column track | mm | 880 | |
| Track form | Linear Guides | ||
| Worktable | Workbench size (L*W) | mm | 1800*800 |
| Maximum load-bearing capacity of the workbench | kg | 1500 | |
| T-Slot | No/mm | 7 -22*110 | |
| Spindle | Spindle taper hole (model/installation dimensions) | mm | BBT50 |
| Spindle speed | rpm | 6000 | |
| Maximum speed | rpm | 4500 | |
| Spindle drive mode | Gearbox | ||
| Feed | X/Y/Z axis rapid feed | m/min | 24/24/24 |
| Maximum cutting feed | mm/ min | 10000 | |
| Tool Change | Tool changing method | Side mount | |
| Tool handle specifications | type | BT50 | |
| Tool capacity | tools | twenty four | |
| Maximum tool diameter (cutting tool) | mm | 105 | |
| Maximum tool diameter (without tool) | mm | 200 | |
| Maximum tool length | mm | 350 | |
| Maximum tool weight | kg | 15 | |
| Fastest tool change time | sec | 4.9 | |
| Motor | Spindle motor | kw | βiIP 30 / 8000 |
| Three-axis servo motor | kw | Βis 40 / 2 000 | |
| Βis 40 / 2 000 | |||
| Βis 40B / 2 000 | |||
| Cutting water pump motor | m/hm | 4-30 | |
| Accuracy | Positioning accuracy | mm | ±0.005 |
| Repeat positioning accuracy | mm | ±0.003 | |
| Power requirements | Power requirements | kv | 30 |
| Air source requirements | Kg/cm | 6~8 | |
| Machine size | Length*Width*Height | mm | 4800*3800*3800 |
| weight | t | 13 |
