What Is a Vertical Lathe Machine?
A vertical lathe machine, also known as a vertical turning lathe, is designed for machining large, heavy, and high-diameter workpieces. Unlike a horizontal lathe, the workpiece is mounted vertically on a rotating table, allowing gravity to improve stability during machining. This structure makes CNC vertical lathe machines ideal for:
• Large flanges
• Bearing rings
• Valve bodies
• Railway wheels
• Heavy equipment parts
Vertical Lathe vs Horizontal Lathe
When choosing a CNC turning machine, many manufacturers compare vertical lathes and horizontal lathes based on workpiece size, machining stability, and production requirements. While both machines perform turning operations, their structures and applications differ significantly.
| Item | Vertical Lathe Machine | Horizontal Lathe Machine |
| Spindle Direction | Vertical | Horizontal |
| Workpiece Position | Mounted vertically on the rotary table | Mounted horizontally between the chuck and the tailstock |
| Best For | Large & heavy workpieces | Long shaft-type parts |
| Loading Method | Easier crane loading | More difficult for large parts |
| Stability | Better for heavy-duty machining | Better for long cylindrical parts |
| Floor Space | More compact | Requires longer installation space |
| Gravity Support | Natural vertical support | Limited support for heavy parts |
| Typical Applications | Flanges, bearing rings, valve bodies | Shafts, rods, pipes |

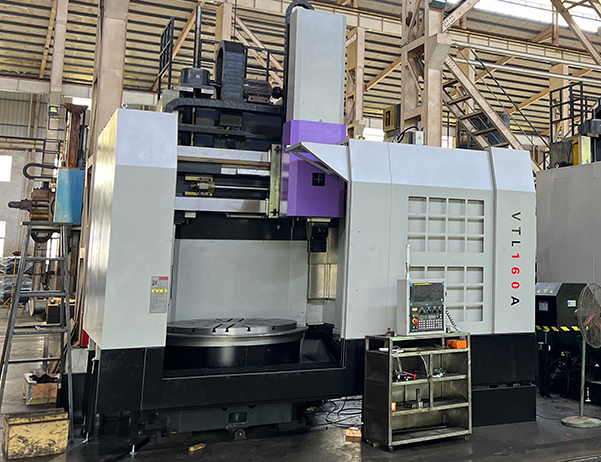

Why Choose Our Vertical CNC Lathe？
Designed for high-rigidity machining and large-workpiece applications, our vertical CNC lathes deliver reliable precision, stable, heavy-duty cutting performance, and efficient production capability.
Backed by advanced manufacturing capacity, precision inspection systems, and worldwide export experience, we help customers improve machining efficiency and production reliability.

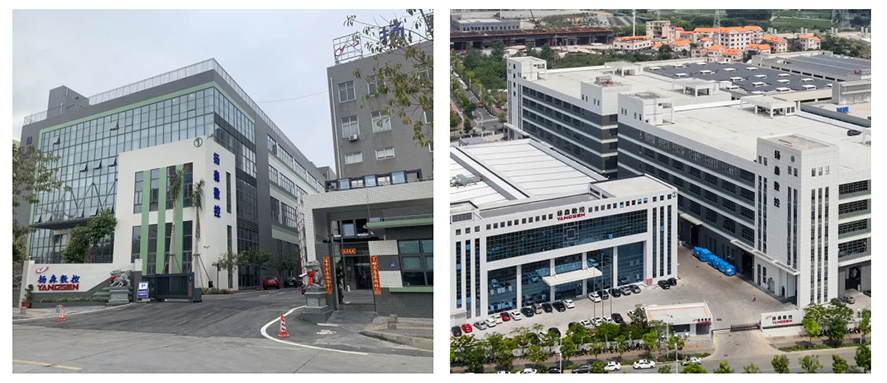

100,000+㎡ Manufacturing Base
Advanced CNC manufacturing facilities located in Xiamen support large-scale machine production, precision assembly, and strict quality control.
100+ Professional R&D Engineers
Experienced engineering teams focus on machine structure optimization, machining stability, and precision control for complex industrial applications.
100+ Core Technology Patents
Continuous innovation in CNC machine design, spindle technology, and intelligent manufacturing systems ensures reliable machining performance and long-term stability.
Exported To 50+ Countries
Trusted by industrial manufacturers worldwide with reliable machine quality, professional technical support, and global export experience.

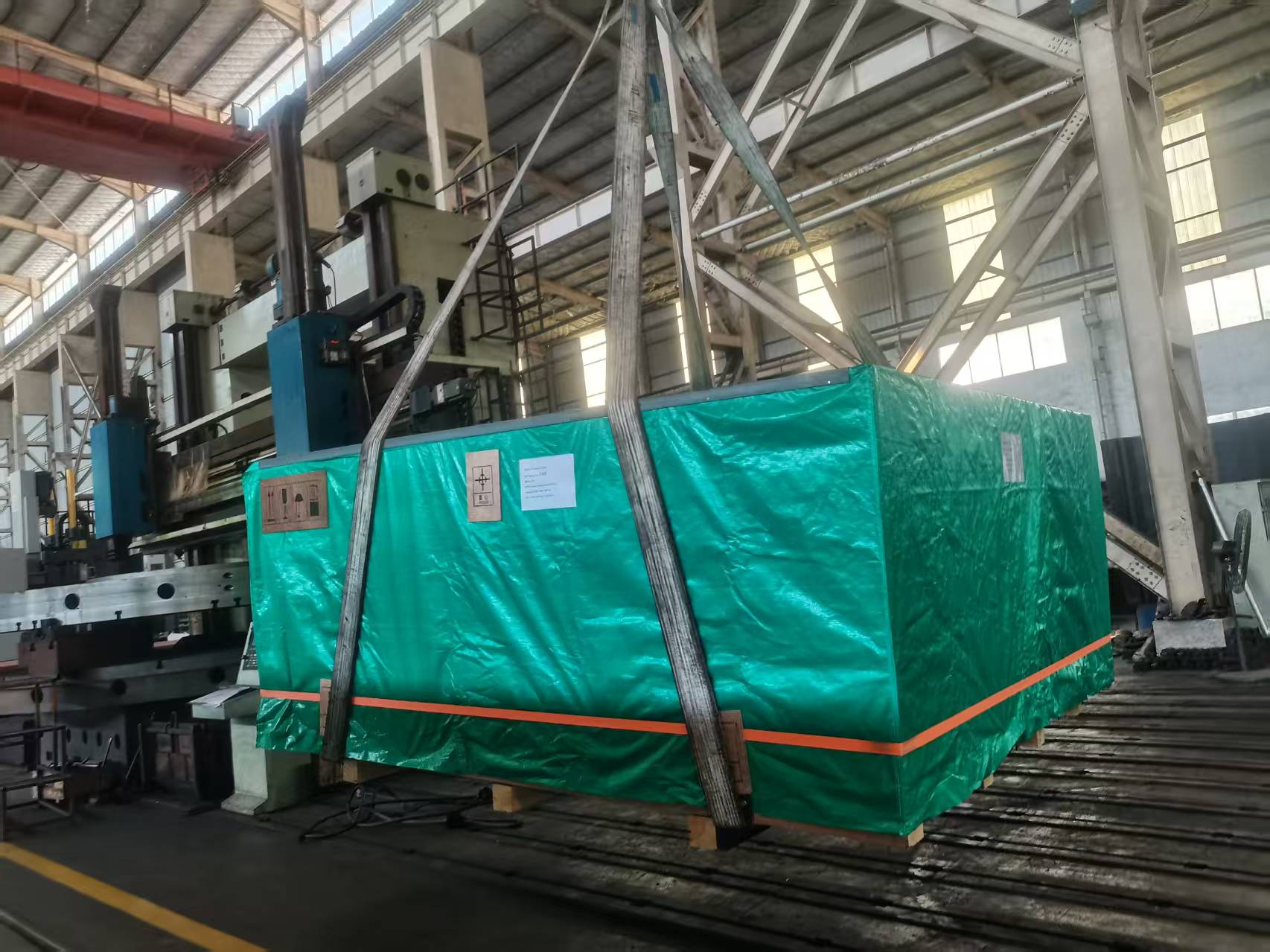

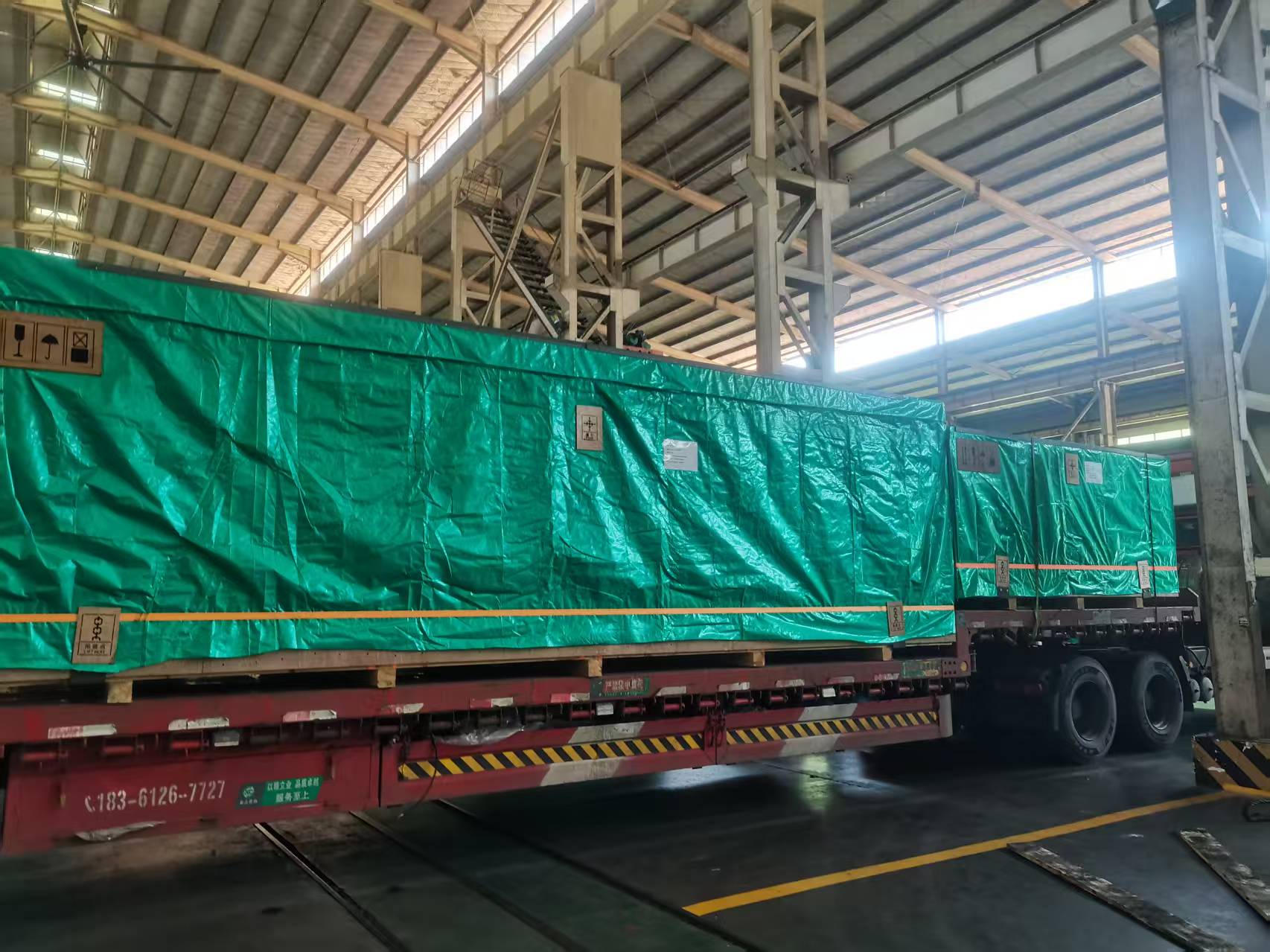

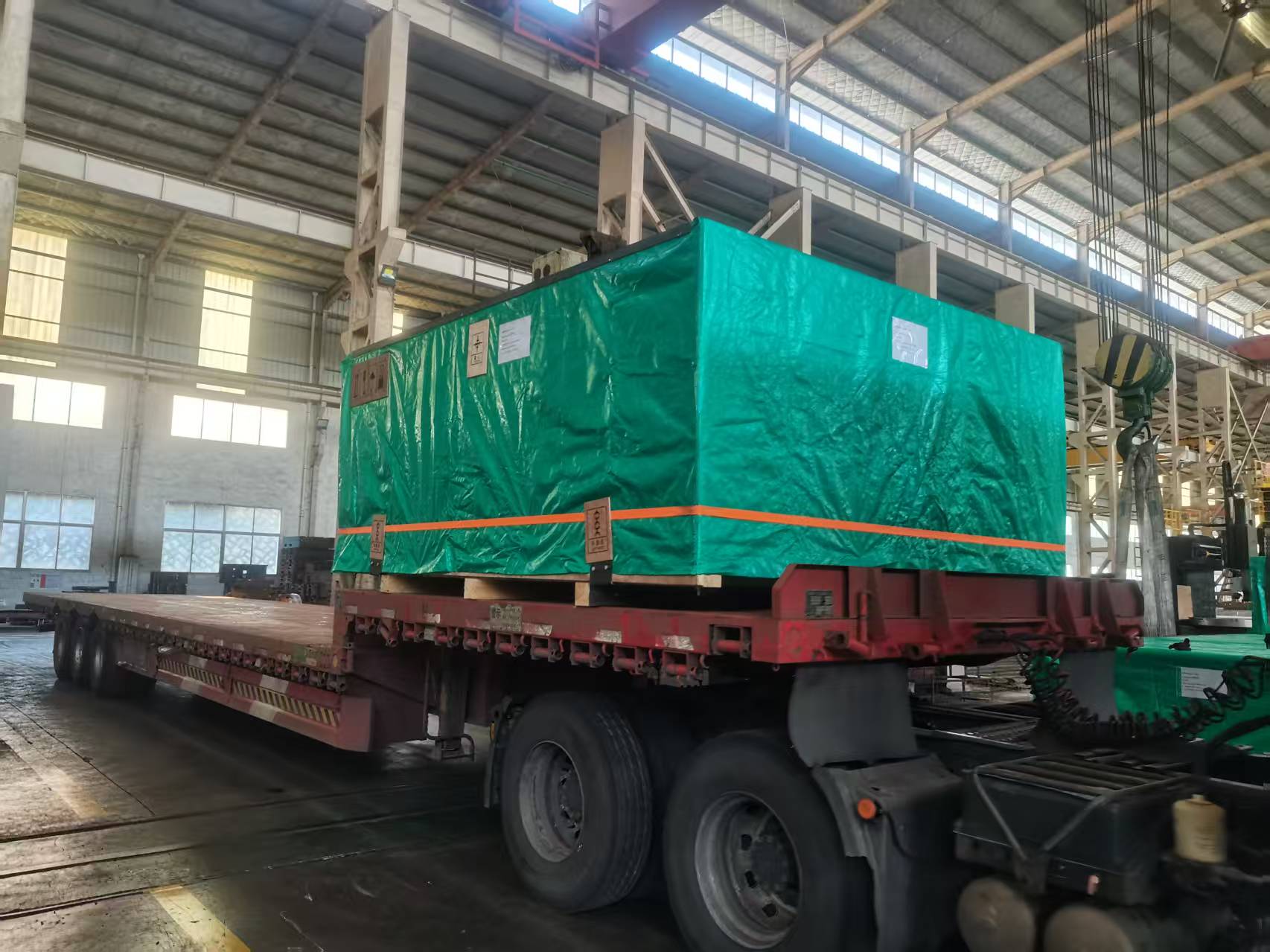

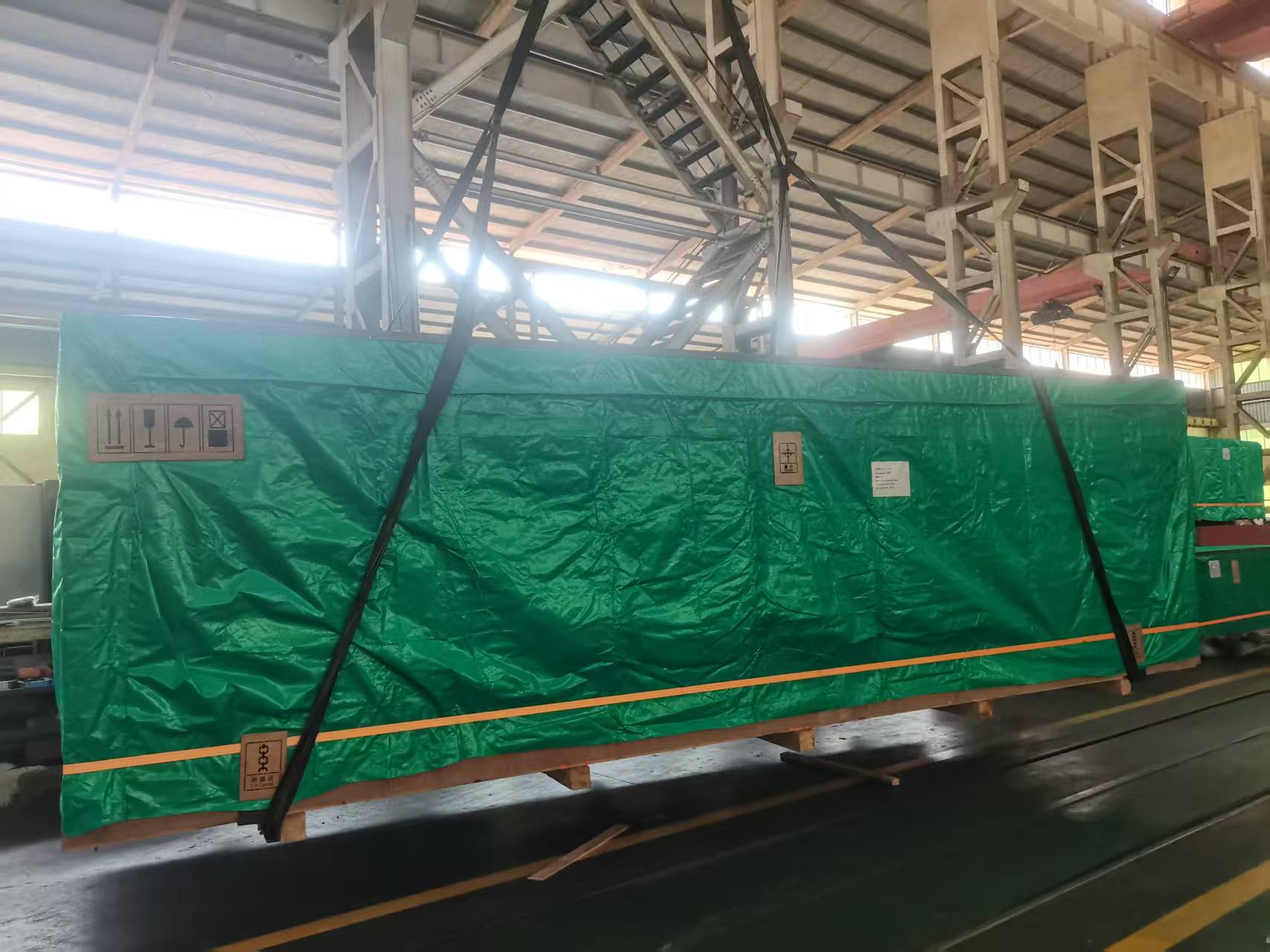

Professional CNC Machine Packaging Solution
Every vertical lathe machine is professionally protected before shipment to ensure safe transportation and reliable overseas delivery.
Our export packaging solutions are designed for large CNC machines, helping reduce vibration, moisture exposure, and transportation risks during long-distance shipping.
Laser Accuracy Inspection Report
To ensure stable machining accuracy and reliable performance, our machine is tested using professional laser calibration equipment before shipment.

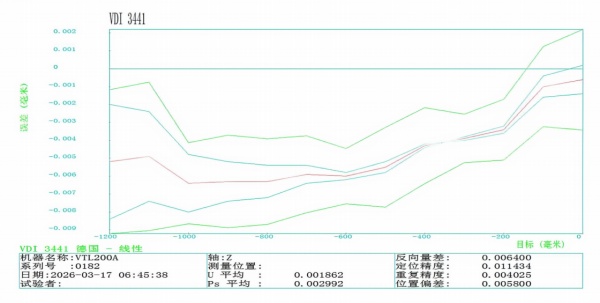

The following data is from a recently exported VLT200A unit equipped with linear scales.
Z-Axis Accuracy Data:
Backlash: 0.0064 mm
Positioning Accuracy: 0.011434 mm
Repeatability: 0.004025 mm
Positional Deviation: 0.0058 mm
X-Axis Accuracy Data:
Backlash: 0.0018 mm
Positioning Accuracy: 0.013755 mm
Repeatability: 0.005931 mm
Positional Deviation: 0.0119 mm
These laser inspection results demonstrate the machine’s stable positioning performance, precision repeatability, and high-accuracy machining capability for large workpiece applications.
|
|
 |

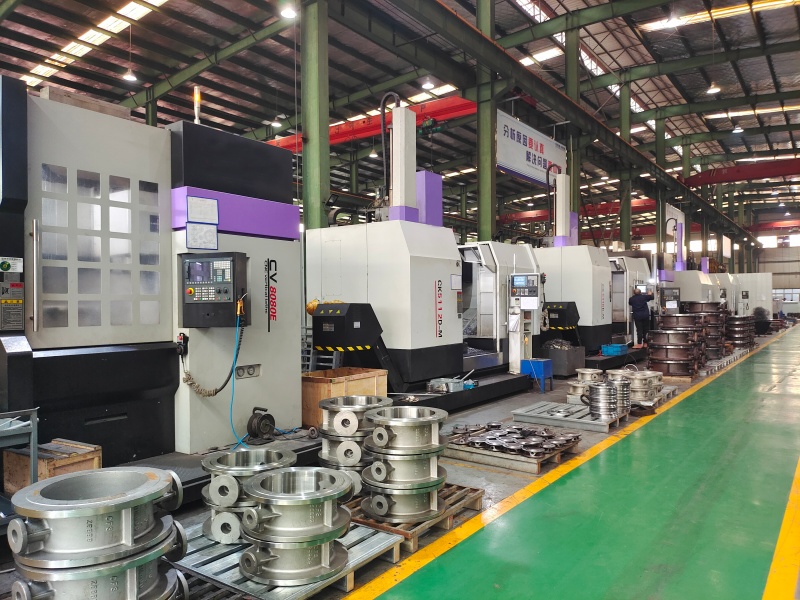

Large valve bodies and industrial flange components often require stable machining performance, high rigidity, and reliable accuracy during heavy-duty turning operations.
Our CNC vertical lathe machines are designed for large casting parts and complex circular components used in valve manufacturing and industrial pipeline systems.
Typical Valve Components:
Industrial Valve Bodies
Large Pipe Flanges
Pressure Valve Components
Pump Housings
Heavy Casting Parts
1. What Is a Vertical Lathe Machine Used For?
A vertical lathe machine is mainly used for machining large-diameter and heavy workpieces such as valve bodies, flanges, bearing rings, railway wheels, and industrial casting components.
2. What Is the Difference Between a Vertical Lathe and a Horizontal Lathe?
A vertical lathe uses a vertical spindle structure with the workpiece mounted on a rotary table, making it more suitable for large and heavy components. Horizontal lathes are typically used for long shaft-type parts.
3. What Industries Commonly Use Vertical Lathe Machines?
Vertical lathe machines are widely used in:
Oil & Gas
Valve Manufacturing
Wind Power
Railway Industry
Heavy Equipment Manufacturing
Energy Industry
4. What Machining Operations Can A Vertical Lathe Perform?
A CNC vertical lathe machine can perform multiple machining operations, including:
Turning
Facing
Internal Boring
Grooving
Drilling
Threading
5. Does The Machine Support High-Precision Machining?
Yes. Our VLT series machines can be equipped with high-precision linear scales and undergo laser calibration inspection before delivery to ensure stable positioning accuracy and repeatability.
6. Do You Provide Export Packaging And Overseas Delivery?
Yes. All machines use professional export-standard packaging solutions with waterproof protection and reinforced transportation support for safe overseas shipment.
