CNC machining is all about control. It’s a type of manufacturing in which computers control machine tools to produce parts. Making sure the machine cuts materials properly involves telling it how it should move and where it should cut. These commands are the CNC machine parameters. Put simply, parameters are the primary variables that define the cutting process. They make a design concept real by helping to direct the machine. The above tolerances are the best for the part’s design and technical requirements on the CNC machined drawing or technical drawing.
Why are the settings so important anyway? Certainly, a wrong parameter can ruin components or snap cutters. There are several reasons to optimize the CNC machining process parameters. It can provide accuracy and precision. Parts match the blueprint. Affects the quality of surface finish. Sound parameters add to the life of a tool.
The optimized conditions will provide the manufacturability of the process. They permit high Material Removal Rate (MRR). That means faster part making. Engineers know this : the search for optimum parameters is key for cost-effective production in any CNC machining shop. It is useful for compliance with a required specification and tolerance.
You will find some important parameters here. The major features are Spindle Speed, Feed Rate, Depth of Cut and Cutting Speed. These are basic tools and are essential to carry out cutting. The plunge rate, stepover, and chip load are your secondary parameters. We also know about Coolant and Lubrication.
This point is crucial: all of the parameters are mutually coupled. There are many factors affecting them, such as workpiece material, tool material and geometry, and part specifications. Grasping these is important to the tradesman for engineers, toolmakers, and machinists.
These are the most frequent parameters. Mastering them is key to the CNC process.

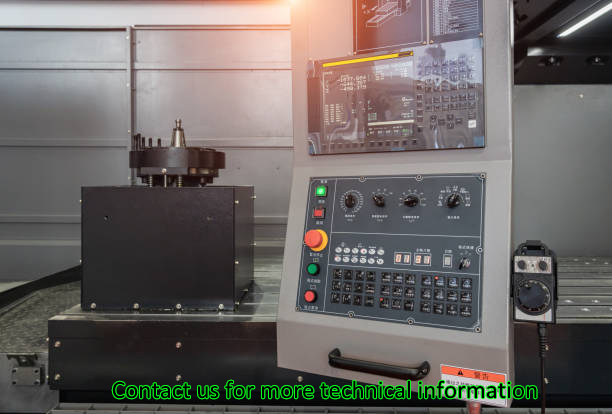

What is Spindle Speed? It's how fast the machine spindle rotates, measured in RPM. The tool spins in the spindle. Machine control sets RPM based on the needed Cutting Speed and tool diameter. You calculate RPM using Cutting Speed (SFM or m/min) and diameter. For SFM: RPM = (Cutting Speed * 12) / (π * Tool Diameter in inches). This point is noticeable: correct calculation is vital for effective cutting and achieving design intent.
Spindle speed is directly related to Cutting Speed, which is the rate at which the edge of the tool travels through the material. The higher the RPM, the faster the saw will cut. If the speed is too low, rubbing, heat and wear will result. An excessive speed also produces heat, which leads to tool breakage or material burning. The proper feed effect tool life, surface finish and MRR while the suitable speed affects these as well.
Spindle Speed is influenced by workpiece material (harder workpiece requires lower speed). Material matters too -- carbide can take higher speeds than HSS. The tool diameter is a factor because you have to run bigger tools more slowly for the same cutting speed. Workholding and machine rigidity matter as well; Machine Rigidity is Key to High Rpm without Chatter.
Feed Rate is the rate at which the tool plunges into the material. It is used to calculate the material removal rate based on revolutions or distance. Units are distance per linear (inches/min) or per circular (inches/rev) motion. For milling, it is related to chip load.
Connection with Chip Load
Feed Rate is in some way related to Chip Load, which is the thickness of material removed per the edge of a tool per revolution. Chip Load = (Feed Rate per Revolution) / (Number of Cutting Edges). Optimal chip load takes away heat and clears chips to make cutting in your shop both safer and easier.
If it is too low a feed rate, then there will be rub, heat and wear. When the feed rate is too high, the tool is subjected to overloading and breakage. Engineers know it: getting those to balance right is a critical part of efficient cutting, as well as accuracy and precision.
Effect on Surface Finish, Tool Life, and MRR
Feed Rate affects a number of response variables. A lower Feed rate (in range) provides a Smooth Surface Finish. Tool Life Chip load can impact Tool Life; Proper chip load produces a better chip, which removes heat and protects the cutting edge. During roughing, as the feed rate is high, MRR (Material Removal Rate) results in higher roughing rates.
Selection Terms for Feed Rate
You choose the Feed Rate based on your Workpiece Material( hardness affects safe speed). Tooling (material, flutes, diameter, coating, Cutting Tool Geometry) has an impact on recommended chip load. Tool Load is influenced by Depth of Cut and Stepover.
Rigidity of the Machine is important as well; less rigid setups may resonate at higher feeds, leading to chatter or poor finish. Workholding and Fixturing play a big part here.
Definition and Types
Depth of Cut is how much material is removed in a single pass. In milling, they are Axial Depth of Cut (below) or Radial Depth of Cut (side). Stepover is the radial depth of cut in full-width passes in the production of parts in most CNC shops.
Effect on Tool Load, Deflection, and Machining Time
Load on the Tool depends on Depth of Cut; the higher the cut, the more material is removed at a time, so load is imposed on the Tool and the spindle(Spindle Power). Higher loading can lead to deflection of the tool and, accordingly, affect Dimensional Accuracy and tolerances. Longer tools deflect more. However, greater Depth leads to a lesser number of passes in fine finishing, thus decreasing Machining Time and increasing Material Removal Rate.
Influence Factors of Depth of Cut Decision
Selecting the Depth of Cut depends on the Machine Rigidity and power; the machine must have the capacity to withstand force, and the spindle should have power (Torque Limitations).
Tool Size & Length count: Larger/Shorter Tools are Better for Deeper Cuts. Material of Workpiece (harder needs less cut). Workholding & Fixturing Strength to avoid vibration / shifting. Desired Machining Outcomes count; roughing needs greater depths for speed, finishing needs lighter ones for accuracy and finish.
Definition and Spindle Speed and Tool Diameter
Cutting Speed is the speed the cutting edge of the tool passes over the material. Built in SFM or m/min. It comes from Spindle Speed and Tool Diameter. Example: SFM = (RPM π Tool Diameter inches) / 12. The smaller tools also need higher RPM at a st the same cutting speed.
Importance of Material Cutting Efficacy
Cutting Speed is everything when it comes to cutting. Low speed is no good because it produces rubbing and heat, and wear. Speed too high will generate a heat edge, and the tools will experience a quick failure. The proper cutting speed, usually obtained from tool manufacturer recommendations, provides good tool life and efficient cutting based on good quality.
Factors Affecting the Choice of Cutting Speed (Material, Tooling)
Tool Material heat Condition resistance; Carbide has better wear of HSS at higher Speeds. Coolant and lubrication allow for greater speed by controlling heat. Machine rigidity is a factor, too: vibration might call for a slower cutting speed.
Definitions and Significance
Plunge Rate is any time the tool moves axially – down – into the material, and it’s how quickly the tool is moving. This is important when you are plunging into a cut. It is typically slower than the side feed rate.
Effect on Tool and Work Piece
Many tools are not designed for aggressive plunging unless they have specific cutting tool geometry to accommodate such an operation. False Plunge Rate will chip/break the tip on the tool, or overheat work, with material hardening/melting. Be patient when adjusting plunge rates, especially in hard materials.
Definition and Its Influence on Machining Time and Surface Finish
Stepover is used in milling. This is the sideways distance that the cutter travels from pass to pass when clearing an area. It is a form of radial DoC. Greater stepover takes away more material more quickly, thereby increasing Material Removal Rate and, as a result, reducing Machining Time. But as the stepover increases, so do the cusps in a Surface Finish that can be very rough.
Feed Rate (Per Tooth)
The amount of material that a tool bit removes with each revolution of the spindle. Chip Load = (Feed Rate per Revolution) / (Number of Cutting Edges). This point is key: it’s the real chip thickness.
The Optimum chip Forming and its Importance
Optimum chip formation is essential for productivity and tool life. Good Chip Evacuation– A proper chip evacuates heat, making its way through the cutting zone, and breaks predictably. Too low a chip load results in rubbing, heat, and wear. Too much load overloads the tool, vibrates or breaks it. Engineers understand this: observing the chip takes you to the right settings; the tool communicates via chips.
Cutting Process - Coolant and Lubrication. In manufacturing,e to control the cutting environment - i.e. to control the chips produced. Coolants regulate the temperature, while cutting produces heat, and any temperature fluctuations can ruin the integrity of the tool and the material being worked on. Lubricants reduce friction.
Effect on Surface Finish and Tool Life
Effects of Proper Coolant and Lubrication on Intended Machining Results. It enhances Surface Finish by decreasing heat/friction (chip welding), which causes smearing/built-up edge. It increases Tool Life by not allowing the edge to get hot. It promotes Dimensional Accuracy as it does not expand and warp.
The parameters are limited by the machine in all CNC machine shops. Spindle Power and Torque Limits are critical - the spindle must be kept at Spindle Speed / Cutting Speed under load. Depth of Cut and Feed Rate suffer due to a lack of power.
Rigidity of the Machine counts: you want a machine that doesn’t buckle under pressure. From "less" rigidity comes "more" vibration (chatter) - and therefore fewer parameter values for surface finish, tool life, and accuracy. Workholding & Fixturing also contribute to overall stiffness.
And how the part is clamped is just as crucial to successful CNC work. 3) Workholding and Fixturing Must Lock the Part Down. If the workpiece does vibrate under the cutting forces, chatter occurs, as well as poor surface finish and inaccurate dimensions will prevent any tolerance from being upheld.
Secure clamping is vital. Check that clamps aren’t in the way of the tool path and hold the part decently without warping it; warping results in false features once unclamped. And this is crucial: Bad workholding ruins parts and wastes material, which defeats the purpose of manufacturing.
Parameters don't work alone. Alter one and you impact the others, and the result. If you're going faster and faster, you've got to alter the Feed Rate to maintain the correct Chip Load. Larger Depth of Cut could require a lower Feed Rate to control Q=load. Insight into interactions is the foundation of optimization for the balance between speed, tool life and quality.
Feed Rate and tool tip geometry have significant effects on surface roughness (Ra). A lower feed rate per revolution creates fewer cusps, which results in a finer finish (lower Ra). Cutting Speed & Coolant aid in lessening heat/friction on the smeared surface.
Every parameter influences Tool Wear and Tool Life. High Cutting Speed Heat Wear. Wrong Chip Load (feed rate), which leads to wear from friction or even being blown out. Too large an e value of depth of cut and feed leads to the tool overloading. The use of Correct Coolant/Lubricant can further reduce heat/friction for added tool life. Engineers get it- you get the right balance of Tool Life and not-sucking MRR, and you save money.
Dimensional Accuracy & form error. Dimensional accuracy & form error are connected with Tool deflection & vibration. Forces High from Depth of Cut/Feed Rate forces Deflection, causing false sizes/forms out of Spec. Noise from parameters/rigidity affects the surface finish and the form. Parameter selection and stable cutting are key for tight specifications. Keep focusing on as little force/vibration as you can when you are finishing that fancy kind of cuts.
The cutting forces increase with DOC and FR. Vibration (Chatteris ) Important when forces are large. The cutting Speed matters too; Chatter occurs while cutting plywood at a certain speed. These forces are opposed by machine rigidity and secure Workholding and Fixturing. The correct parameters can decrease the instigated force and vibration for stable cutting.
Machining Time is the linear function of Feed Rate and Depth of Cut. (The higher rates/depths, the quicker the material is removed (MRR), and the shorter the cutting time.) This must compromise Tool Life and finish requirements. Tools that break, parts you end up scrapping (unreadable accuracy/bad surface finish) and low MRR (material removal rate) all consume cost. Balanced parameters minimize cost/part in a CNC job shop.
Begin with some of the tool manufacturers’ figures, somewhere. Cutting Speeds and feed rates of tool material combinations are suggested. Guidelines also come from machine builders. Those make for great starting points. Online databases help too. Use them as a guide.
We subtract the first two equations and add 2 times the third equation to obtain 0 = 0, showing this system has no solutions (let alone a unique solution).
Apply Spindle Speed from Cutting Speed/diameter, and Chip Load from Feed Rate/flutes. This all puts you in the correct neighbourhood. These math relationships are vital to understand. Engineers have been getting it: Mathematics can inform the setting of parameters in CNC machining.
Trying it out works. Perform test cuts on scrap. Begin on the conservative side (lower speed/feed, moderate depth). Gradually augment the factors in the arguments. Trim level sound (cut should be smooth). Watch the chips. Check surface finish. You will want to perform empirical tests to adjust the settings for your environment. Have patience. Make little, impulsive changes.
CAN software is powerful. It derives some parameters from the built-in data. Tooling, materials defined, and it says suggested speeds/feeds. Others replicate cuts to spot problems before any cutting. Here is the key point: CAM makes simplification calculations and displays, and machining a better point of design reference.”
For high-volume work, there are advanced methods. Design of Experiments (DOE) tests model interactions parameter organized. AI/ML analyse to predict what parameters work best. These are for advanced users, but they demonstrate the unlimited potential for performance. Search for insights in your data.
How to apply this knowledge to the shop floor of a CNC machine shop? Best practices follow.
New stuff, tool or operation? Start low. Use cutting speeds/feed rates slower than the guess." Moderate Depth of Cut. Tool—Part—Machine—all safer can increase later. More difficult to fix x broken tool/destroyed part. Start somewhere safe.
Use senses. Sound tells a lot. Smooth sound is good. Squealing is rubbing/heat. Banging is chatter. Watch chips. Are they curling, breaking off real nice? Or dust, long nests, shards? Chip look tells the feed rate/chip load. And note the things about sound and chips.
Visually check the tool frequently, particularly during fit-up or production runs. Look at cutting edges. Even wear? Chipping? Built-up edge? Quick wear indicates parameter tuning is quite necessary for better Tool Life. Observation of ongoing activity can reveal long-term impact. Notice things on the tool.
Keep records! For each successful run, record values for: material, tooling, operation, settings, and results. Establish your database of proven settings for your machine/shop. Saves time, avoids mistakes. Pretty awesome. Every little thing matters when it comes to process improvement.
CNC machining specifications are the foundation of the part's accuracy. It is much more than a number; it is the determining factor of quality, tool life, efficiency, and ultimately, cost. Perfecting them involves knowing: the workpiece material, the tools being used, the machine capabilities, the work holding everything together, and what we should expect the product result to be.
